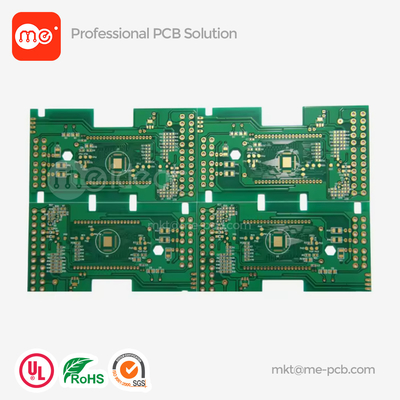

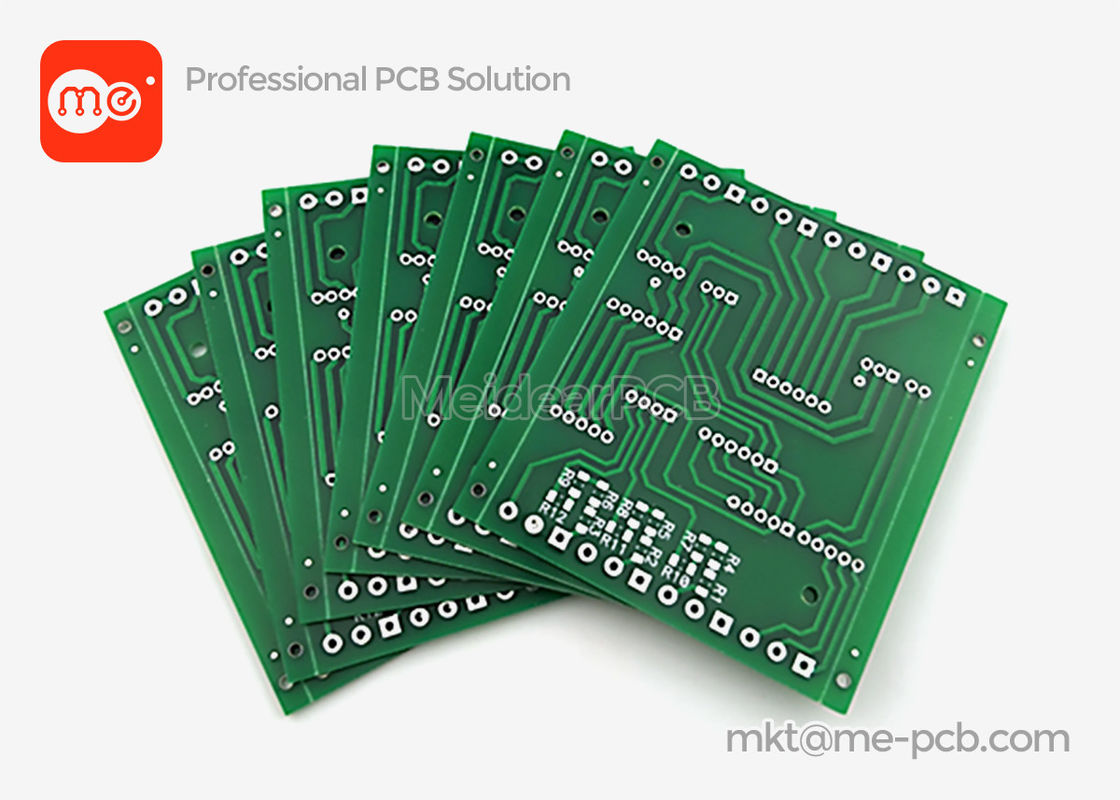

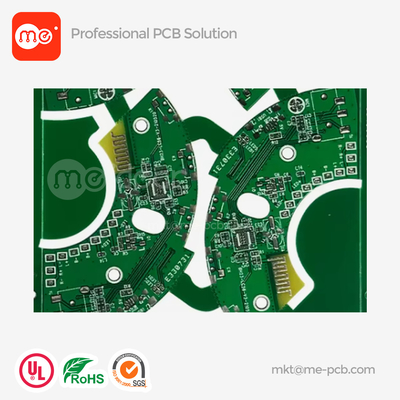

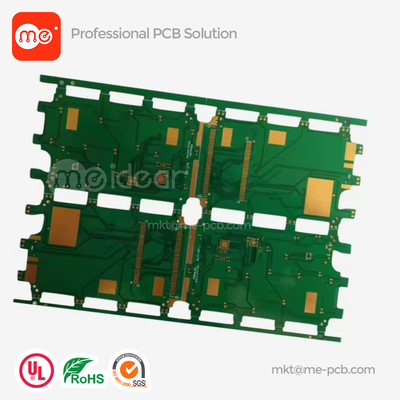

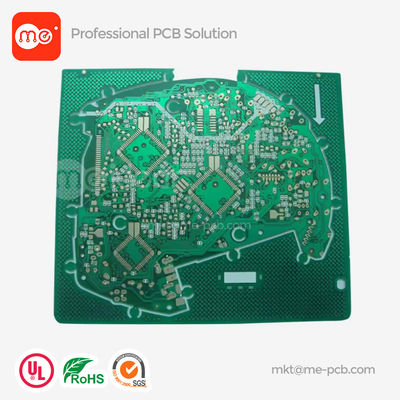

Heavy Copper PCB Customized PCB Manufacturing Substrate FR4 PCB through hole pcb
Product Details:
Place of Origin: | China |
Brand Name: | Printed Circuit Board |
Certification: | UL,ISO |
Model Number: | MEPCB |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | 0.01-100/pcs |
Packaging Details: | Inner:vacuum packaging;Outer:Carton;Bigger Quantity:Pallets |
Delivery Time: | 4-12 Working Days |
Payment Terms: | T/T, Western Union, L/C, MoneyGram |
Supply Ability: | 20000SQM/Month |
Detail Information |
|||
Material: | FR4 CEM-3 Alu PTEE | Copper Thickness: | 0.5-10 OZ |
---|---|---|---|
Soldermask Color: | White Black Red Blue Yellow Purple Etc. | Min. Hole: | 0.1mm |
Min. Space: | 0.15mm | Max PCB Size: | 1500*800mm |
Board Thickness: | 0.2mm-3.2mm | Surface Finish: | OSP HASL HASL-LF ENIG Immersion Tin Immersion Siliver |
Special: | Can Be Customized | Impedance Control: | +/- 10% |
Standard: | IPC-A-610 Class II-III | Peelable Mask: | 0.3-0.5mm |
Finished Thickness Control: | +/- 5% | Type: | Customizable, Electronic Board, Pcb/printed Circuit Board/oem Pcb |
File We Can Accept: | Gerber File、CAM-350、Portal、Pads 2000、CAD、ORCAD、P-CAD、CAM 2000 | Contact Mail: | Mkt@me-pcb.com |
Skype: | Angel_xingming |
Product Description
Heavy Copper PCB Customized PCB Manufacturing Substrate FR4 PCB through hole pcb
There are various shipping methods are available for you to choose from, such as DHL,Fedex,UPS,EMS,HK post and direct flight on special line. So we can offer PCB lead time as fast as 2-3 days and if your project is urgent we can offer you 12-24 hours expedited PCB fabrication.
All of the circuit boards will be tested well before being shipped out.
Item | Fabrication Capabilities | Remarks |
Month Capability | 1000 types/month | |
12,000 sqm/month | ||
Layers: | 1-24 layers | |
Board Material: | Standard FR4: Shengyi, ITEQ, KB, GDM High TG: S1000-2, IT180 | |
Aluminum | ||
FPC Material | ||
Maximum Size | FR-4: 500x1100mm | |
Al: 500x1500mm | ||
FPC: 500x1500mm | ||
Board Thickness | 0.4-10mm | |
Surface treatment | OSP, HASL, LF-HASL, ENIG(Chem. Gold), Immersion Tin, Immersion silver, Plating hard gold, Gold fingers,Flash gold, ENEPIG | |
Tolerance Size of Board | CNC tolerance is ±0.2mm, v-cut tolerance is ±0.5mm | |
Min solder mask bridge: | 0.1mm | |
Drill Diameter Range | 0.2-6.3mm | Min. Size of drill via CNC is 0.2mm. 6.3mm is maximum size. |
Annular Ring | ≥0.1mm(4mil) | If Annular Ring is smaller but there is enough space, there is no limit for the Annular Ring size. But if there is not enough space coupled with dense lines, the Annular Ring size should be over 0.1mm |
Min hole: | 0.15mm (mechanical drilling) | |
0.1mm (laser drilling) | ||
Finished Hole Size | 0.2--6.20mm | Because the copper will cover the surface of hole, the Finished hole size is smaller than it is in Gerber file |
The Size Tolerance of Finished Hole (CNC |
±0.08mm | Tolerance of Finished Hole Size is ±0.08mm. For example, if the drill in the Gerber file is 0.6mm, the finished drill will be 0.52-0.68mm on standard. |
Min. Width of Legend | ≥0.13mm | Min. width of legend is 0.13mm, if it is smaller, the legend in the finished board will be not clear. |
Minimum Height of Legend | ≥0.8mm | Min. height of Legend is 0.8mm, if it is smaller, the legend in the finished board will be not clear |
Space between Trace and Board Edge |
≥0.2mm(8mil) | Routing: the space between line and frame should be over 0.2mm. V-cut panel: the space between line and v-cut line should be over 0.4mm. |
Panelization | V-scoring, Tab-routing, Tab-routing with Perforation (Stamp Holes) |
Leave min clearance of 1.6mm between boards for break-routing. For V-score panelization, set the space between boards to be zero. |
Min. aperture in half-hole technology |
0.6mm | Half-hole is a special technology and the min. aperture must be over 0.6 mm |
One-stop PCB manufacturer service
MeidearPCB offers all customers one-stop solution for custom pcb board. We're professional LED PCB, FR4 PCB, aluminum PCB, flexible circuit boards Manufacturer. Meidear is dedicated to manufacture quick turn prototype & samples, and small-medium volume quality PCBs. While we are dedicated to make your PCB sourcing job easy and reliable, with our efforts, experience and service. |
|
Make It Better
What we always do is trying our best to make everything in our business better. This way we could save lots of time and make more profit for our customers as well as ourselves. Making it better means to be more ambitious, more dependable and more helpful, we want to be a better business partner and you could thoroughly trust us, most importantly, it is the brand culture of meidear, improving ourselves and helping others can make our better and happier. |
|
Our professional team is to serve you.
Meidearpcb have been providing "High Mix, Quick Turn, Any Volume" service more than 15 years. Meidearpcb manufactures PCBs of the high quality standards. We can provide all kinds of PCBs, such as HDI pcb, high frequency, high speed, rigid-flex&flex pcb, fpc, CEM-3, thick copper, metal core, ceramic base. The quality control is built into each process of PCB manufacturing from engineering. The thing that motives us a lot is that, as we are committed to providing better customer service, there are lots of our old customers come to us for their future orders. |
|
More enjoyable price and more excellent quality.
It is understandable that paying more attention to the price in business, but as we all know the price is not everything. In Meidearpcb we try our best to offer our customers more enjoyable price, however, it does not mean we will use low quality material to meet the target price that is over our bottom line. We really care quality. If we lose the order from our customers as we can not meet the target price, it is OK, we still have chance for next time, but if we lose the quality of our products, we will lose everything. So we try to offer our customers more enjoyable price all the time that is based on the more excellent quality. |
|
12-24 Hours Lead Time
No MOQ
FR-4 | ALPCB | Flexible PCB | PCB Rigid-Flex PCB | HDI PCB
24 Hours Live Support
ISO9001 & UL & RoHS & REACH Certified
2-3 Days Delivery
Small Volume PCB Fabrication
24 Hours Component Quote
No MOQ
Expedited Services
24 Hours Component Quote
No MOQ
Expedited Services
24 Hours SMT Stencil Quote
No MOQ
laser processing
Stainless stencil with laser cutting
Other requirements: Fiducial mark with half etched, polishing.
